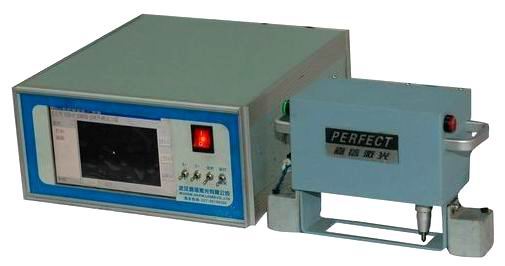

This machine takes complete LCD control system, integrates PC, display, and control system into one unit, no need to connect computer, with smaller size which can save space, easier to operate and high efficiency.
1.This model is portable type, special for marking on those work pieces with big size and un-moveable.
2.The software is with powerful edit function, can layout any kind of characters and graphics, and is compatible with AutoCAD software.
3.It can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically, support logos and graphs designed in DXF format from AutoCAD, CorelDraw, and multi-kinds font such as MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
4.It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment.
5.The portable marking head is Perfect Laser’s original design, only with 2 Kg, portable and smart, very esay to carry.
|
Standard Working Area |
135×20mm |
|
Optional Working Area |
90mm×20mm, 125mm×20mm, 150mm×100mm, 200mm×100mm |
|
Marking Depth |
0.01~2mm |
|
Marking Speed |
≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
|
Repeated Accuracy |
0.01 mm |
|
Pin Hardness |
HRC 73 |
|
Power Supply |
220V±10％, 50Hz |
|
Air Pressure |
0.2-0.6 Mpa |
|
Machine Power |
≤400 W |
|
Working Environment |
-5～40 ℃ |
|
Marking Head Weight |
2 Kgs (Portable) |
